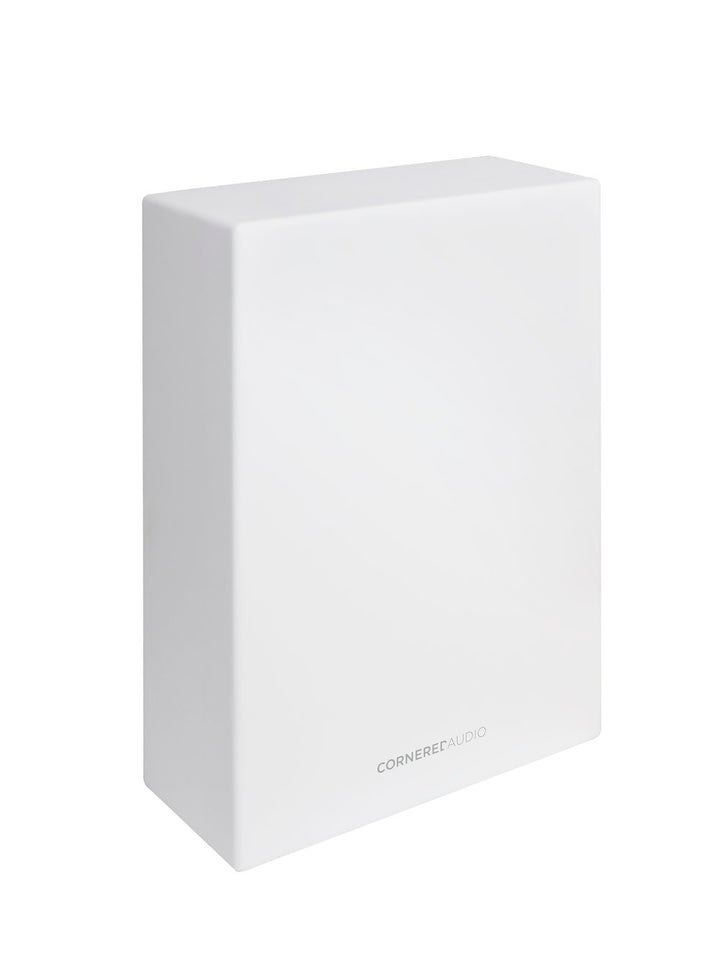

C8S is a compact and shallow on-wall subwoofer. The woofers face the wall and the sound is reflected out to the surroundings, allowing the subwoofer to blend discretely into any modern environment and offering full protection of the woofers. The C8S features a powerful 8” woofer with the dual voice coil and a passive radiator to extend the sub-bass performance to below 34 Hz. The built-in crossover with heavy-duty terminals allows the cables for the top-boxes to be connected directly from the C8S. A built-in mounting system also works as feet, so the subwoofer can either be hung on the wall or placed on the floor. Or, the feet can be removed and it can be placed under a sofa or other furniture. Measuring only 16cm deep – or 19 cm with wall mount, the C8S offers very loud output for its size with real sub-bass extension. C8S is designed specifically to be used together with the Cornered C or Ci series but can, of course, be used with any high-quality loudspeaker.

8” woofer with 8” slave
Woofer with dual voice coil
Built-in crossover
On-wall, on-floor or below the sofa
Painted MDF cabinet
Heavy-duty screw terminals

Specifications

• Power handling, IEC268: 100 watt
• Power handling, peak: 400 watt
• Sensitivity, 2,83V/1m: 88 dB
• Maximum SPL, long term: 108 dB
• Maximum SPL, peak: 114 dB
• Frequency response: 30-240 Hz
• Nominal impedance: 8 ohm
• Weight: 10,6 kg
• Measurement: 530x375x190mm
